| الاسم التجاري: | RELIGHT |
| رقم الطراز: | المنتجات النهائية LED |
| الـ MOQ: | 100 م |
| السعر: | Contact us to get best price |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 10000 م/م |
Features:
Size:460x230mm Flexible LED Sheet SPl Magic Color, ic Using SM
Using 3M 300LSE, SM butt-joint terminal connection, easy installation
Power supply connected in series: 1PcS, signal connected in series: 3PCS

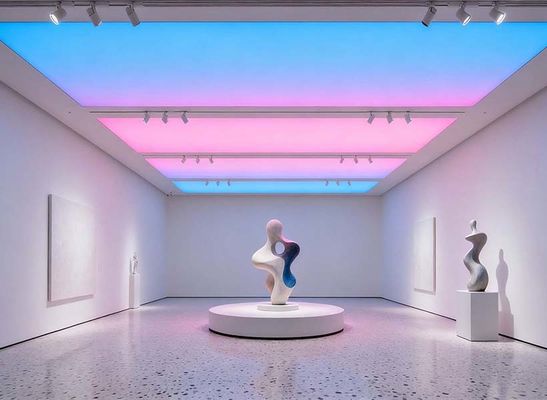

Ceiling soft film, advertising light box, dedicated product,
Cover film height 50mm no light spot
Certified by CE, CB, ROHS, UL, ETL
Product Description
| LED | Size (SM) |
CRI | LED (SM) |
LUMENS (lm/m) |
Current (mA/M) |
Power (W/M) |
Cut Length (MM) |
CCT |
Plate spacing (mm) |
Maximum Cascade |
| 5050 | 460x240 | 80/90 | 200 | 1050 | 2.16 | 52 | 460x23 | RGBW | 5 | 3 |
Remark
Other Specifications
| Protection grade | IP20 |
| Working temperature(°C) | -25~+45 |
| Storage environment temperature (°C) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 460x23 |
| weight | / |
Remark
The test environment temperature is 25±2°C;
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
The above "/" means that this parameter is not required for the time being.
