| Brand Name: | RELIGHT |
| Model Number: | 2210 |
| MOQ: | 100M |
| Price: | Contact us to get best price |
| Payment Terms: | T/T |
| Supply Ability: | 10000M/M |
other features
Long Project distance and uniform light for wall washer
Different colors available Mono/CCT/RGB/RGBW/SPI/DMX
15°/30°/60°/30X45°/35X65°/25P20° Lens Available
Waterproof grade IP67 5 years warranty
White &Black tube available

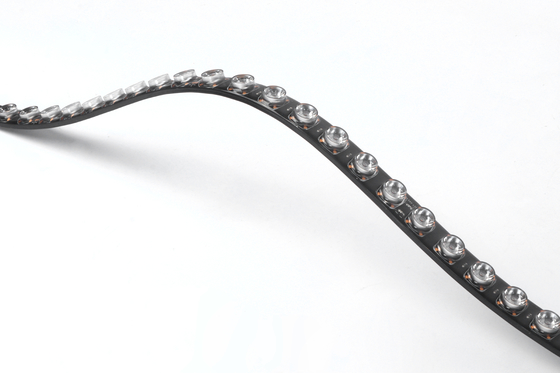

Flexible and small. Light and easy for installation
Waterproof grade IP67
5 years warranty
Technologies: ON/OFF,RGB,SPI,DMX
Application:

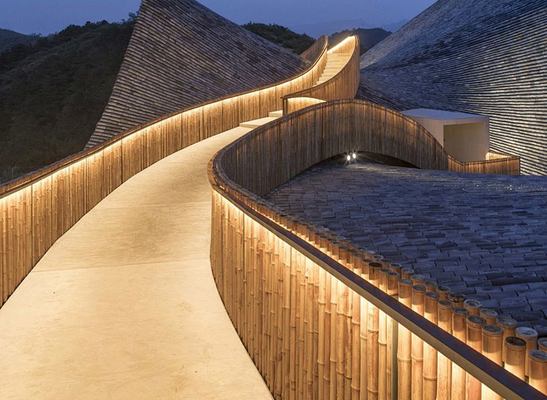

Suitable for indoor and outdoor use, can be used as decorative lighting, such as shopping malls, buildings, advertising lights, etc.
Product Specifications
| P/N | LED Quantity | CCT/K | CRI | LED/m | LUMENS (lm/m) | Vf/V | Current (mA/M) | Power (W/M) | Cut Length (MM) | Max Run (M) |
| RL-FV2420030283520-XXX-WWWVA2205 | 2835 | 2700 | 80/90 | 30 | 2200 | 24 | 833 | 20 | 33.5 | 5 |
| 3000 | 2300 | |||||||||
| 4000 | 2400 | |||||||||
| 6500 | 2400 | |||||||||
| RL-FV2420042303020-RGB-WWWVA2205 | 2835 | R:620-630 G:520-530 B:465-475 |
80/90 | 42 | / | 24 | 833 | 20 | 166.7 | 5 |
| RL-FV2420036505020-RGBW-WWWVA2205 | 2835 | R:620-630 G:520-530 B:465-475 5000K |
80/90 | 36 | / | 24 | 750 | 20 | 166.7 | 5 |
Other Specifications
| Protection grade | IP67 |
| Working temperature(°C) | -25~+60 |
| Storage environment temperature (°C) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 5 |
| weight | / |
Remark
The test environment temperature is 25±2°C.
The above data are typical values; the actual parameters of the product may be different from the typical data; the data is subject to change without notice.
The above "/" means that this parameter is not required for the time being.
Applied Standards
CE ROHS cULus LISTED ETL Intertek CB Reach UKCA
