| Brand Name: | RELIGHT |
| Model Number: | D25 |
| MOQ: | 100M |
| Price: | Contact us to get best price |
| Payment Terms: | T/T |
| Supply Ability: | 10000M/M |
Features:
Technologies:
·ON/OFF,DMX,SPI
Application:

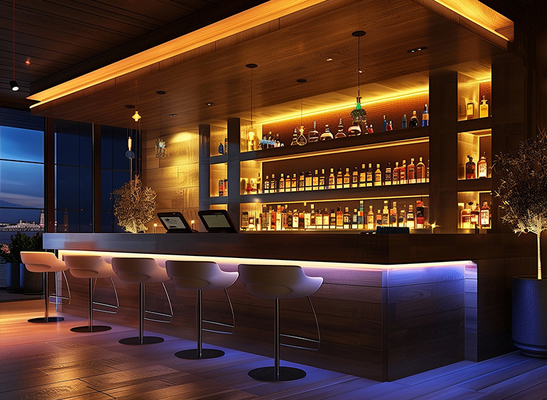

This product is suitable for hotels,KTVs,homes,cabinets, courtyards,etc., for contouring, atmosphere lighting decorative lighting and other purposes.
Product Description
| P/N | LED | CCT(K) | CRI | SDCM | Color Options | LEDs/m | Lumens | Voltage | Current | Power | Cut | Max Run |
| RL-FV2410360283516-XXX-FWCD25 | 2835 | 2700 | / | / | 360° | 360 | 800 | 24 | 666 | 16 | 33.3 | 5 |
| 3000 | 800 | |||||||||||
| 4000 | 850 | |||||||||||
| 6500 | 850 | |||||||||||
| RL-FV2410240283516-SPI-FWCD25 (SM6603ST3) | 2835 | R:620-625 | / | / | 360° | 280 | 450 | 24 | 666 | 16 | 50 | 5 |
| G:525-530 | ||||||||||||
| B:465-470 | ||||||||||||
| RL-FV2410168505016-DMX-FWCD25 | 5050 | R:620-625 | / | / | 360° | 168 | 410 | 24 | 666 | 16 | 83.3 | 5 |
| G:525-530 | ||||||||||||
| B:465-470 | ||||||||||||
| W:2700-6500 |
Other Specifications
| Protection grade | IP67 |
| Working temperature(℃) | -25~+60 |
| Standard length(℃) | -25~+70 |
| Maximum cascade length(m) | 5 |
| Maximum cascade length(m) | 5 |
| weight | / |
Remark
·The test environment temperature is 25±2℃;
·The above data are typical values,the actual parameters of the product may be different from the typical data;the data is subject to change without notice;
·The above"/"means that this parameter is not required for the time being.
