TB Round Series AC LED Module IP20 Protection 120V / 230Vac Input

Detail Information

Place of Origin:

CHINA

Certification:

CE,ETL,UL

CRI:

90/80

Protection:

IP20

Input:

120V/230Vac

Frequency:

50/60Hz

Beam Angle:

120 Deg

Power:

Various CCT Available:

2700/3000/4000/5000/5700/6500K

Highlight:

IP20 AC LED Module

Product Description

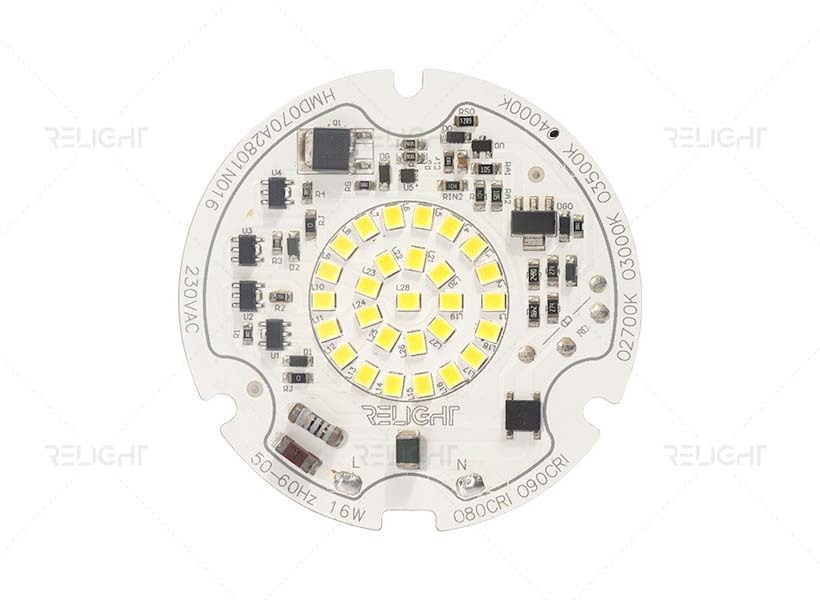

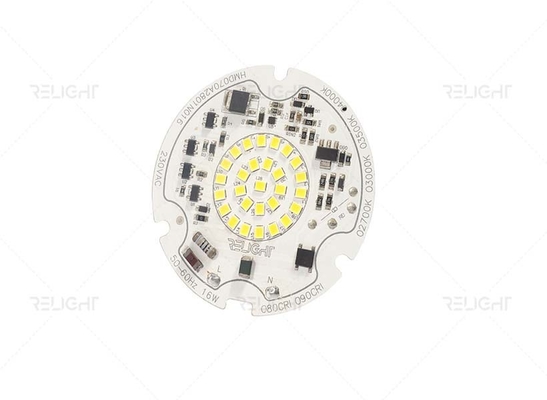

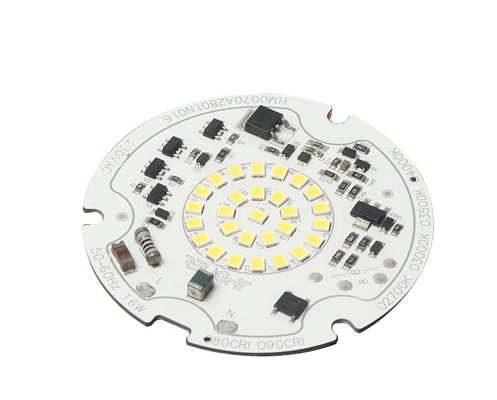

TB Round Series-AC LED Module

Key Specifications

Product Overview

The TB Round Series AC LED Module delivers high-performance lighting solutions with exceptional efficiency and flexible configuration options.

Key Features

Technical Specifications

P/N	Size (mm)	Input (Vac)	Power (W)	PF	Flux (Lm)	Efficiency (Lm/W)	CCT (K)	CRI	Dimming
RL-HMD70A2801H016-840TB	Ø70	230	16	0.95	1680	105	4000	80	TRIAC
RL-HMD100A2802H016-840TB	Ø100	230	16	0.95	1840	115	4000	80	TRIAC
RL-HMD180A2802H023-840TB	Ø180	230	23	0.95	2400	105	4000	80	TRIAC

Note: 1-Various CCT available (2700-6500K); RL-XXXXXXXXXXXXXXX-840X (8-80CRI; 40-4000K CCT)
2-Typical Optical-electronic parameters above @ Ta=25℃

Product Selection Guide

P/N	Size (mm)	Input (Vac)	Power (W)	PF	Flux (Lm)	Efficiency (Lm/W)	CCT (K)	CRI	Dimming
RL-HMD70A2801H016-827TB	Ø70	230	16	>0.95	1520	95	2700	80	TRIAC
RL-HMD70A2801H016-830TB	Ø70	230	16	>0.95	1600	100	3000	80	TRIAC
RL-HMD70A2801H016-840TB	Ø70	230	16	>0.95	1680	110	3500	80	TRIAC
RL-HMD70A2801H016-850TB	Ø70	230	16	>0.95	1680	110	4000	80	TRIAC
RL-LMD100A2802H016-827TB	Ø100	120	16	>0.95	1680	105	2700	80	TRIAC
RL-LMD100A2802H016-830TB	Ø100	120	16	>0.95	1760	110	3000	80	TRIAC
RL-LMD100A2802H016-840TB	Ø100	120	16	>0.95	1840	115	4000	80	TRIAC
RL-LMD100A2802H016-850TB	Ø100	120	16	>0.95	1840	115	5000	80	TRIAC
RL-HMD100A2802H016-827TB	Ø100	230	16	>0.95	1680	105	2700	80	TRIAC
RL-HMD100A2802H016-830TB	Ø100	230	16	>0.95	1760	110	3000	80	TRIAC
RL-HMD100A2802H016-840TB	Ø100	230	16	>0.95	1840	115	4000	80	TRIAC
RL-HMD100A2802H016-850TB	Ø100	230	16	>0.95	1840	115	5000	80	TRIAC
RL-LMD180A2802H016-827TB	Ø180	120	23	>0.95	2185	95	2700	80	TRIAC
RL-LMD180A2802H016-830TB	Ø180	120	23	>0.95	2254	98	3000	80	TRIAC
RL-LMD180A2802H016-840TB	Ø180	120	23	>0.95	2415	105	4000	80	TRIAC
RL-LMD180A2802H016-850TB	Ø180	120	23	>0.95	2415	105	5000	80	TRIAC
RL-HMD180A2802H016-827TB	Ø180	230	23	>0.95	2185	95	2700	80	TRIAC
RL-HMD180A2802H016-830TB	Ø180	230	23	>0.95	2300	100	3000	80	TRIAC
RL-HMD180A2802H016-840TB	Ø180	230	23	>0.95	2530	110	3500	80	TRIAC
RL-HMD180A2802H016-850TB	Ø180	230	23	>0.95	2530	110	4000	80	TRIAC
