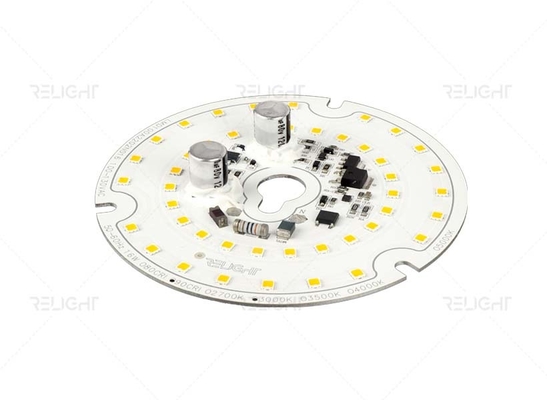

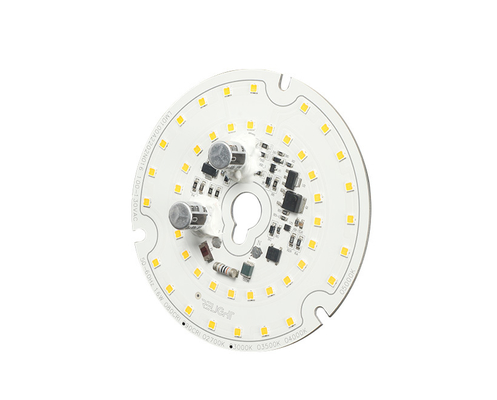

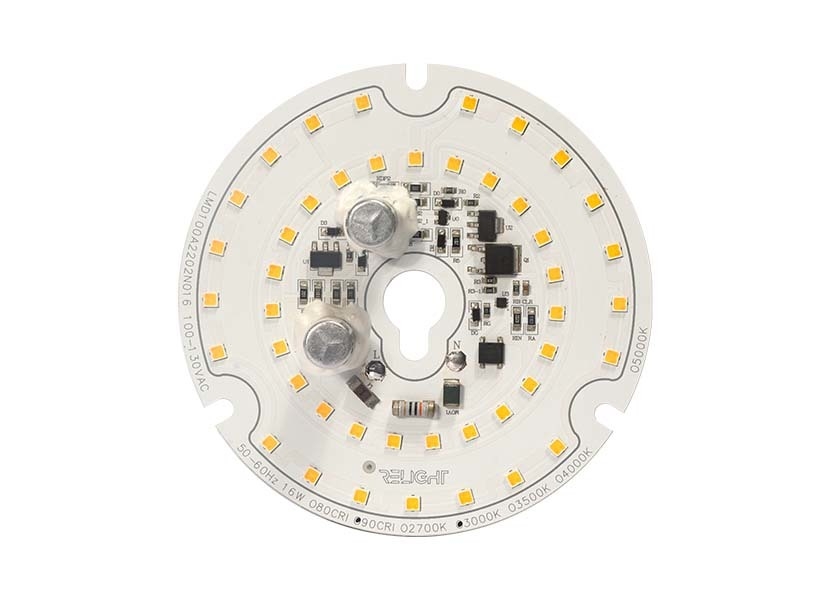

FB Round Series AC LED Module 2700K 3000K 4000K 5000K 5700K 6500K

Detail Information

Place of Origin:

CHINA

Certification:

CE,ETL,UL

CRI:

90/80

Protection:

IP20

Input:

100-130Vac

Frequency:

50/60Hz

Beam Angle:

120 Deg

Power:

Various CCT Available:

2700/3000/4000/5000/5700/6500K

Highlight:

Round AC LED Module

Product Description

FB Round Series-AC LED Module

Key Specifications

Product Features

Selection Guide

P/N	Size (mm)	Input (Vac)	Power (W)	PF	Flux (Lm)	Efficiency (Lm/W)	CCT (K)	CRI	Dimming
RL-LMD70A2201N016-930FB	Ø70	120	16	>0.95	1200	80	2700	90	TRIAC
RL-LMD70A2201N016-927FB	Ø70	120	16	>0.95	1200	85	3000	90	TRIAC
RL-LMD70A2201N016-940FB	Ø70	120	16	>0.95	1360	90	4000	90	TRIAC
RL-LMD70A2201N016-950FB	Ø70	120	16	>0.95	1360	90	5000	90	TRIAC
RL-LMD100A2202N016-927FB	Ø100	120	16	>0.95	1440	90	2700	90	TRIAC
RL-LMD100A2202N016-930FB	Ø100	120	16	>0.95	1520	95	3000	90	TRIAC
RL-LMD100A2202N016-940FB	Ø100	120	16	>0.95	1600	100	4000	90	TRIAC
RL-LMD100A2202N016-950FB	Ø100	120	16	>0.95	1600	100	5000	90	TRIAC
RL-LMD180A2202N016-927FB	Ø180	120	23	>0.95	1840	80	2700	90	TRIAC
RL-LMD180A2202N016-930FB	Ø180	120	23	>0.95	1955	85	3000	90	TRIAC
RL-LMD180A2202N016-940FB	Ø180	120	23	>0.95	2070	90	4000	90	TRIAC
RL-LMD180A2202N016-950FB	Ø180	120	23	>0.95	2070	90	5000	90	TRIAC

Technical Specifications

Parameter	Value
Input	100-130Vac
Frequency	50/60Hz
Rated power	Typical power(±10% tolerance)
PF	>0.95
Protection	IP20
Surge level	2.5KV
Hi-pot	1.5KVac
Storage temperature	-30-85℃
Operation temperature	-30-80℃(Ts of led components)
Beam Angle	120 deg
Flicker index	<30%(RL-LMDxxxxxxxx series only, according to North American T24 requirement)

Safety Information

The LED module and all its components shall not be subjected to mechanical stress.
Correct electrical polarity, or not module may be damaged.
Ensure the power supply is suitable for the total load.
Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
Installation of LED modules shall be made referring to all applicable electrical and safety standards.
Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
It is better to use the AC led module with safety cover.
Modules may be hot to the touch. Use caution when handling.

Note: 1-Various CCT available(2700-6500K); RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)
2-Typical Optical-electronic parameters above @ Ta=25℃
