High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8

Brand Name:	RELIGHT
Model Number:	DOB-57mm
MOQ:	100M
Price:	Contact us to get best price
Payment Terms:	T/T
Supply Ability:	10000M/M

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ETL,UL

CRI:

90/80

Protection:

IP20

Input:

200-240Vac

Frequency:

50/60Hz

Beam Angle:

120 Deg

Power:

Various CCT Available:

2700/3000/4000/5000/5700/6500K

Highlight:

LED Light Module 57mm

AC LED Light Module

Product Description

Features:

110lm/W-15W-80CRI
Connects directly to AC Power
Various CCT available:2700+6000K
CRI:90
Macadam 5 steps color bin

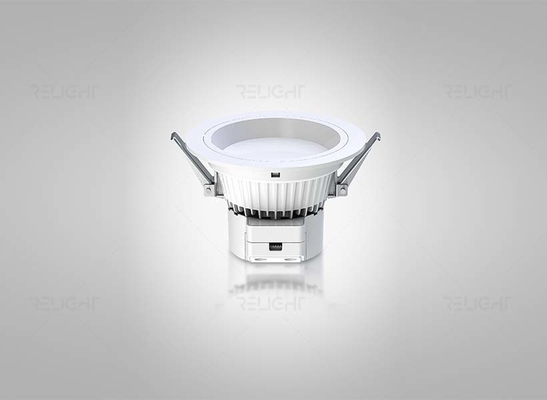

Solutions for Down light / Spotlight/Candle light/Ceiling light
AC line voltage 230V input directly
Power factor higher than 0.8
TRIAC dimmable/Switch table white

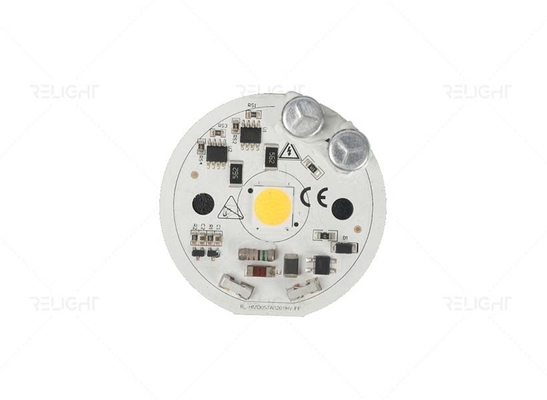

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8 0

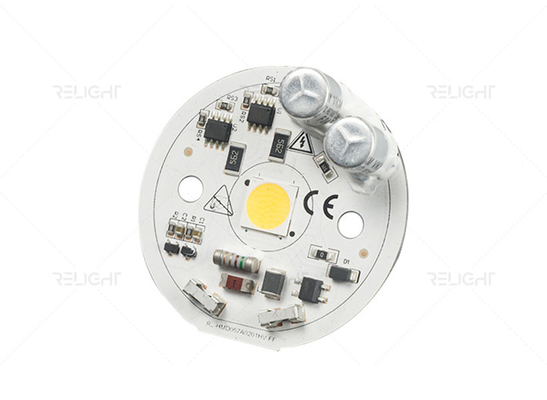

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8 1

Absolute maximum rating at 25℃

P/N	Size	Input	Power	PF	Flux	Efficiency	CCT	CRI	Dimming
P/N	mm	Vac	W	-	Lm	Lm/W	K	-	-
RL-HMD57A1A1AH015-827FF	Ø57	230	15	0.8	1875	125	2700	80	TRIAC
RL-HMD57A1A1AH015-830FF	Ø57	230	15	0.8	1950	130	3000	80	TRIAC
RL-HMD57A1A1AH015-840FF	Ø57	230	15	0.8	2025	135	4000	80	TRIAC
RL-HMD57A1A1AH015-850FF	Ø57	230	15	0.8	2025	135	5000	80	TRIAC
RL-HMD57A1A1AH015-865FF	Ø57	230	15	0.8	2025	135	6500	80	TRIAC

Optical-Electrical Characteristics at 25℃

Feature	Parameter description RL-D57 TW Series
Power Dissipation(max)	5-12
Luminous Flux(max)	500-900lm
Efficiency	75-92lm/W
Bead specification	DOB
Working Voltage	AC200-260V
Power Factor	＞0.8
Flicker	Pst:0.037 SVM:0.023
Hi-pot	1.5KV
Surge level	2.5KV
Substrate material	Aluminum
Color temperature	2700+6000K(Switch table white 2700K-4500K-6000K)
Color rendering index	＞80

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8 2

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8 3

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8 4

Safety Information

1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
