DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle

Name: DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle
Brand: Shenzhen Relight Technology Co., Ltd./Shenzhen Relight Lighting Co., Ltd.
SKU: DOB Module
Availability: InStock

Brand Name:	RELIGHT
Model Number:	DOB Module
MOQ:	100M
Price:	Contact us to get best price
Payment Terms:	T/T
Supply Ability:	10000M/M

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ETL,UL

CRI:

90/80

Protection:

IP20

Input:

200-240Vac

Frequency:

50/60Hz

Beam Angle:

120 Deg

Power:

Various CCT Available:

2700/3000/4000/5000/5700/6500K

Highlight:

112mm AC LED Module

Spot Light AC LED Module

DOB LED Module 112mm

Product Description

Connects directly to AC Power
Various CCT available: 2700/3000/3500/4000/5000/5700/6500K
CRI: 90/80
Macadam 5 steps color bin
Solutions for Down light / Spotlight/Candle light/Ceiling light
AC line voltage 230V input directly
Power factor higher than 0.9
TRIAC dimmable

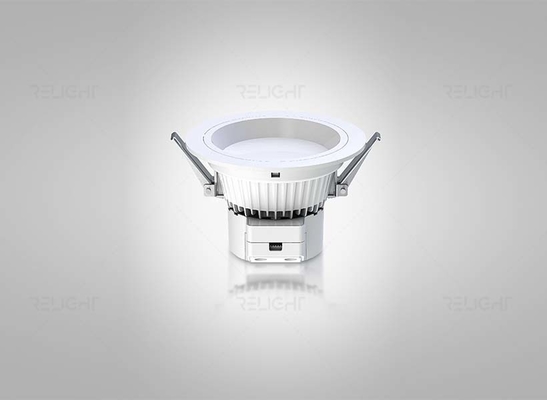

DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle 0

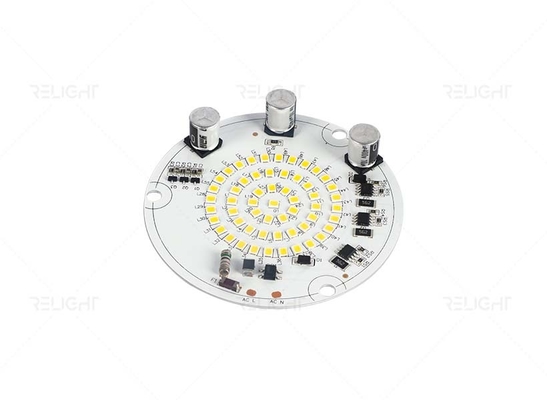

DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle 1

Absolute maximum rating at 25℃

P/N	Size	Input	Power	PF	Flux	Efficiency	CCT	CRI	Dimming
P/N	mm	Vac	W	-	Lm	Lm/W	K	-	-
RL-HMD112A8401H025-827FF	Ø112	230	25	0.9	2750	110	2700	80	TRIAC
RL-HMD112A8401H025-830FF	Ø112	230	25	0.9	2875	115	3000	80	TRIAC
RL-HMD112A8401H025-840FF	Ø112	230	25	0.9	3000	120	4000	80	TRIAC
RL-HMD112A8401H025-850FF	Ø112	230	25	0.9	3000	120	5000	80	TRIAC
RL-HMD112A8401H025-865FF	Ø112	230	25	0.9	3000	120	6500	80	TRIAC

Optical-Electrical Characteristics at 25℃

Input	200-240Vac
Frequency	50/60Hz
Rated power	Typical power(±10% tolerance)
PF	>0.90
Protection	IP20
Surge level	2.5KV
Hi-pot	1.5KVac
Storage temperature	-30-85℃
Operation temperature	-30-80℃(Ts ofled components)
Beam Angle	120 deg
Flicker index	<5%

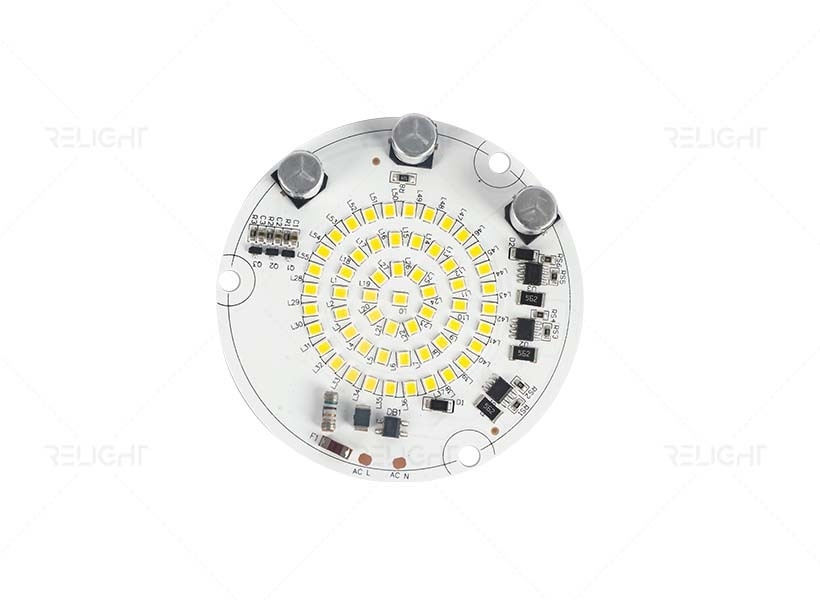

DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle 2

DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle 3

DOB 112mm AC LED Module For Spot Light 120 Deg Beam Angle 4

Safety Information

1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
