Products
Home / Products / AC LED Module /

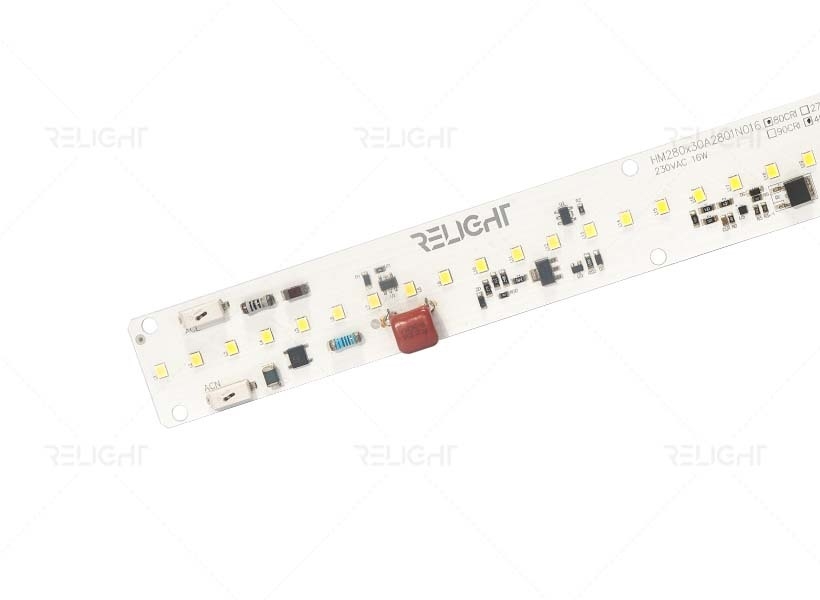

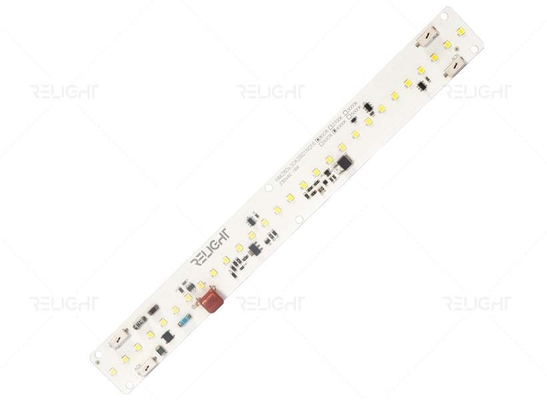

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle

Brand Name: RELIGHT
Model Number: TB Linear Series
MOQ: 100M
Price: Contact us to get best price
Payment Terms: T/T
Supply Ability: 10000M/M
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ETL,UL
CRI:
90/80
Protection:
IP20
Input:
230Vac
Frequency:
50/60Hz
Beam Angle:
120 Deg
Power:
AC
Various CCT Available:
2700/3000/4000/5000/5700/6500K
Highlight:

AC LED Module 50Hz

,

AC LED Module 60Hz

,

Linear LED Module 120 Deg

Product Description
  • High total efficiency up to 115lm/W
  • Various CCT available:2700/3000/3500/4000/5000/5700/6500K
  • CRI:80/90/95 options
  • Macadam 3/5 steps color bin
  • Solutions for Down light/Ceiling light
  • AC line voltage 230V/120V input directly
  • Power factor higher than 0.95
  • Low THDI:<18%
  • TRIAC dimmable

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle 0

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle 1

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle 2



General information



P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-HM280x30A2801H016-840TB
280x30
230
16
0.95
1760
110
4000
80
TRIAC

Note:1-Various CCT available(2700-6500K)；RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)
2-Typical Optical-electronic parameters above @ Ta=25℃

Selection guide
P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-HM280x30A2801H016-827TB
280x30
230
16
0.95
1440
90
2700
80
TRIAC
RL-HM280x30A2801H016-830TB
1520
95
3000
RL-HM280x30A2801H016-835TB
1600
100
3500
RL-HM280x30A2801H016-840TB
1760
110
4000
RL-HM280x30A2801H016-850TB
1760
110
5000
RL-HM280x30A2801H016-857TB
1760
110
5700
RL-HM280x30A2801H016-865TB
1600
100
6500
