Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series

Name: Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series
Brand: Shenzhen Relight Technology Co., Ltd./Shenzhen Relight Lighting Co., Ltd.
SKU: Zhaga
Availability: InStock

Brand Name:	RELIGHT
Model Number:	Zhaga
MOQ:	100M
Price:	Contact us to get best price
Payment Terms:	T/T
Supply Ability:	10000M/M

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ETL,UL

Various CCT Available:

2700/3000/4000/5000/5700/6500K

Protection:

IP20

Input:

200-240Vac

Frequency:

50/60Hz

Beam Angle:

120 Deg

Connectors:

Poke-in Type

Highlight:

DC LED Light Source Module

LED Light Source Module 2700K

Monochrome LED Module 4000k

Product Description

High efficiency up to 190lm/W
Various CCT available: 2700/3000/4000/5000/5700/6500K
CRI: 80/90 options
Macadam 3 steps color bin
Solutions for linear light / troffer light / panel light / wall light
Poke in wiring connectors
Easy & quick for Parallel or serial wiring
Better alternative solutions for fluorescent light
According to Zhaga book 7 requirement

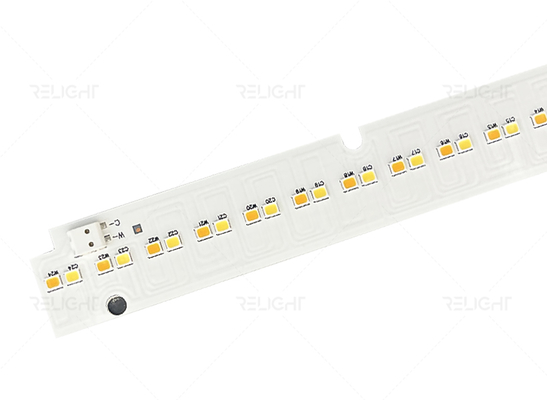

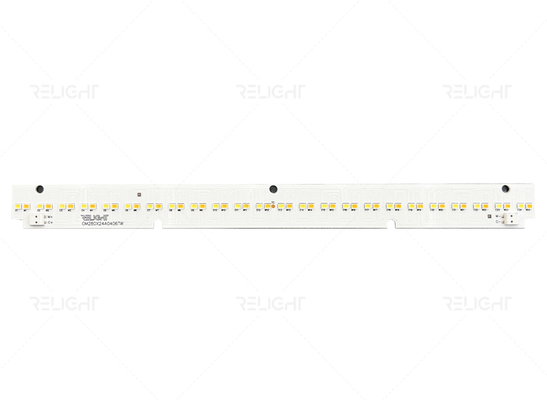

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 0

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 1

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 2

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 3

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 4

Selection guide

P/N	Size	Voltage -Vdc		Current-mA		Power-W		Flux	Efficiency	CCT	CRI
P/N	mm	Typ	Max	Typ	Max	Typ	Max	Lm	Lm/W	K	-
RL-CM70x20A1301H001-827	560x24	47	49	300	400	14.1	19.6	2280	190	4000	80
RL-CM70x20A1301H001-830	560x24	47	49	300	400	14.1	19.6	2040	170	4000	90
RL-CM70x20A1301H001-840	280x24	23	25	300	400	6.9	10	1140	190	4000	80
RL-CM70x20A1301H001-850	280x24	23	25	300	400	6.9	10	1020	170	4000	90
RL-CM70x20A1301H001-857	140x24	11	13	300	400	3.3	5.2	570	190	4000	80
RL-CM70x20A1301H001-865	140x24	11	13	300	400	3.3	5.2	510	170	4000	90

Note:1-Various CCT available(2700-6500K)；RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)

2-Typical Optical-electronic parameters above @ Ta=25℃

General information

Input	SELV (depends on the external driver spec)
Rated power	Typical power(±10% tolerance)
Protection grade	IP20
Storage temperature	-30-85℃
Operation temperature	-30-80℃(Ts of led components)
Beam Angle	120 deg
Connectors	Poke-in Type

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 5

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 6

Monochrome DC LED Light Source Module 2700K 3000K 4000K 5000K 24mm Wide Zhaga Series 7

Safety Information

1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
