Zhaga Round Series DC LED Module IP20 Protection Grade 2700/3000/4000/5000/5700/6500K

Name: Zhaga Round Series DC LED Module IP20 Protection Grade 2700/3000/4000/5000/5700/6500K
Brand: Shenzhen Relight Technology Co., Ltd./Shenzhen Relight Lighting Co., Ltd.
SKU: Zhaga
Availability: InStock

Brand Name:	RELIGHT
Model Number:	Zhaga
MOQ:	100M
Price:	Contact us to get best price
Payment Terms:	T/T
Supply Ability:	10000M/M

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ETL,UL

Various CCT Available:

2700/3000/4000/5000/5700/6500K

Protection:

IP20

Input:

200-240Vac

Frequency:

50/60Hz

Beam Angle:

120 Deg

Connectors:

Poke-in Type

Highlight:

DC LED Module IP20

Zhaga DC LED Module

Round LED Module IP20

Product Description

High efficiency up to 190lm/W
Various CCT available: 2700/3000/4000/5000/5700/6500K
CRI:80/90 options
Macadam 3 steps color bin
Solutions for Down light/Ceiling light
Poke in wiring connectors

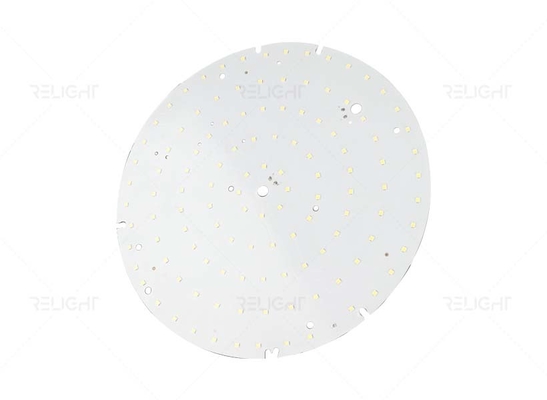

Zhaga Round Series DC LED Module IP20 Protection Grade 2700/3000/4000/5000/5700/6500K 0

Selection guide

P/N	Size	Voltage -Vdc		Current -mA		Power -W		Flux	Efficiency	CCT	CRI
P/N	mm	Typ	Max	Typ	Max	Typ	Max	Lm	Lm/W	K	-
RL-CMD160A1308H017-827	D160	34.5	37.1	500	1000	17.25	37.1	3100	180	2700	80
RL-CMD160A1308H017-830	D160	34.5	37.1	500	1000	17.25	37.1	3277	190	3000	80
RL-CMD160A1308H017-840	D160	34.5	37.1	500	1000	17.25	37.1	3450	200	4000	80
RL-CMD160A1308H017-850	D160	34.5	37.1	500	1000	17.25	37.1	3450	200	5000	80
RL-CMD160A1308H017-865	D160	34.5	37.1	500	1000	17.25	37.1	3450	200	6500	80
RL-CMD160A1308H017-927	D160	34.5	37.1	500	1000	17.25	37.1	3100	165	2700	80
RL-CMD160A1308H017-930	D160	34.5	37.1	500	1000	17.25	37.1	3018	175	3000	80
RL-CMD160A1308H017-940	D160	34.5	37.1	500	1000	17.25	37.1	3191	185	4000	80
RL-CMD160A1308H017-950	D160	34.5	37.1	500	1000	17.25	37.1	3191	185	5000	80
RL-CMD160A1308H017-965	D160	34.5	37.1	500	1000	17.25	37.1	3191	185	6500	80
RL-CMD305A1312H026-827	D305	34.5	37.1	750	1500	26	55	4680	180	2700	80
RL-CMD305A1312H026-830	D305	34.5	37.1	750	1500	26	55	4940	190	3000	80
RL-CMD305A1312H026-840	D305	34.5	37.1	750	1500	26	55	5200	200	4000	80
RL-CMD305A1312H026-850	D305	34.5	37.1	750	1500	26	55	5200	200	5000	80
RL-CMD305A1312H026-865	D305	34.5	37.1	750	1500	26	55	5200	200	6500	80
RL-CMD305A1312H026-927	D305	34.5	37.1	750	1500	26	55	4290	165	2700	80
RL-CMD305A1312H026-927	D305	34.5	37.1	750	1500	26	55	4550	175	3000	80
RL-CMD305A1312H026-927	D305	34.5	37.1	750	1500	26	55	4810	185	4000	80
RL-CMD305A1312H026-927	D305	34.5	37.1	750	1500	26	55	4810	185	5000	80
RL-CMD305A1312H026-927	D305	34.5	37.1	750	1500	26	55	4810	185	6500	80

Note:1-Various CCT available(2700-6500K)；RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)

2-Typical Optical-electronic parameters above @ Ta=25℃

General information

Input	SELV (depends on the external driver spec)
Rated power	Typical power(±10% tolerance)
Protection grade	IP20
Storage temperature	-30-85℃
Operation temperature	-30-80℃(Ts of led components)
Beam Angle	120 deg
Connectors	Poke-in Type

Module temperatures

* Nominal value at which typical performance is specified

** Value at which life time is specified

*** Maximum value for safe operation, do not operate above this value

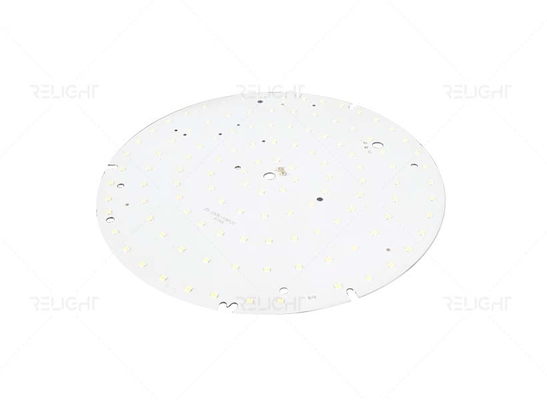

Zhaga Round Series DC LED Module IP20 Protection Grade 2700/3000/4000/5000/5700/6500K 2

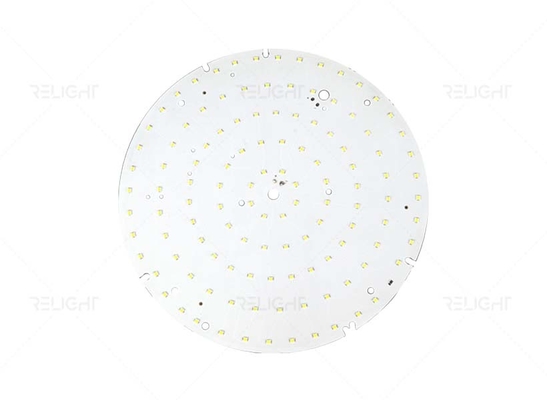

Zhaga Round Series DC LED Module IP20 Protection Grade 2700/3000/4000/5000/5700/6500K 3

Safety Information

1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
