| Brand Name: | RELIGHT |
| Model Number: | 1818 |
| MOQ: | 100M |
| Price: | Contact us to get best price |
| Payment Terms: | T/T |
| Supply Ability: | 10000M/M |
Features:
Technologies: ON/OFF, Dali, PWM, 0-10V, DMX2PWMDimmer, Radio Frequency control
Application:

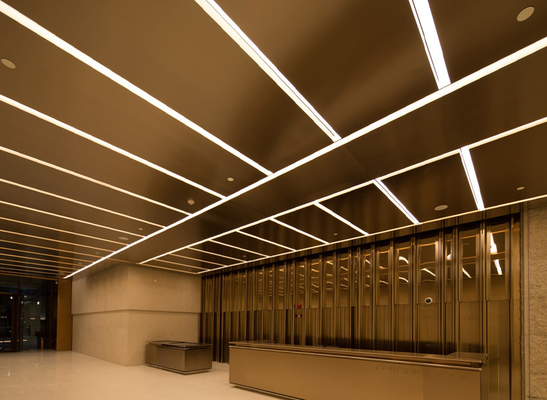

This product is suitable for engineering projects, park lighting, buildingshotels, shopping malls, swimming pools, and other decorative lightingpurposes.
Product Description
| P/N | LED Quantity | CCT(K) | CRI | LED | Lumens (lm/m) | Vf. | Current (mA/m) | Power (W/m) | Cut Length(MM) | Max Run |
| (SM) | (v.) | |||||||||
| RL-FV2410140283510-XXX-FWD1818 | 2835 | 2700 | 80/90 | 140 | 500 | 24V | 417mA | 10 | 50mm | 5m |
| 3000 | 500 | |||||||||
| 4000 | 520 | |||||||||
| 6500 | 520 | |||||||||
| RL-FV2410140283510-8CW-FWD1818 | 2835 | 2700+6500 | 80/90 | 192 | 450 | 24V | 417mA | 10 | 62.5mm | 5m |
| RL-FV2410060505010-RGB-FWD1818 | 5050 | R:620-625nm | 80/90 | 60 | 140 | 24V | 417mA | 10 | 100mm | 5m |
| G:520-525nm | ||||||||||
| B:465-470nm | ||||||||||
| RL-FV2410060505010-RGBW-FWD1818 | 5050 | R:620-625nm | 80/90 | 60 | 340 | 24V | 500mA | 10 | 100mm | 5m |
| G:520-525nm | ||||||||||
| B:465-470nm | ||||||||||
| W:2700-6500 | ||||||||||
| RL-FV2410060505010-SPI-FWD1818 (1M10pixels) | 5050 | R:620-625nm | / | 60 | 190 | 24V | 542mA | 10 | 100mm | 5m |
| G:520-525nm | ||||||||||
| B:465-470nm | ||||||||||
| RL-FV2410060505010-DMX-FWD1818 (1M10pixels) | 5050 | R:620-625nm | / | 60 | 380 | 24V | 542mA | 10 | 100mm | 5m |
| G:520-525nm | ||||||||||
| B:465-470nm | ||||||||||
| W:2700-6500 |
Other Specifications
| Protection grade | IP67 |
| Working temperature(°C) | -25~+60 |
| Storage environment temperature (°C) | -25~+70 |
| Standard length | 5 |
| Maximum cascade length(m) | 5 |
| weight | / |
Remark
The test environment temperature is 25±2°C;
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
The above "/" means that this parameter is not required for the time being.
